RIX Leap L6 2.8X7.6X50MM Thermal Imaging Scope
RIX OpticsRIX Leap L6 2.8X7.6X50MM Thermal Imaging Scope
The LEAP 6 (L6) is the world’s first continuous optical zoom 640 thermal scope, specially designed for outdoor hunting during the day and night. Equipped with a high-sensitivity infrared detector and advanced thermal imaging technology, it ensures clear visibility in challenging conditions such as rain, snow, fog, or darkness. Simplify and streamline your operation with three knobs and two buttons, providing a user-friendly experience where zeroing adjustments no longer require changing directions. Equipped with a 30mm standard pipe diameter, it offers a range of functions including photo taking, video recording, automatic shooting video recording, optical eyepiece magnification, digital zoom, PIP, and multiple reticle options.
Model | L6 | |
Sensor Specifications | Type | VOx Uncooled |
Resolution, pixels | 640×360 | |
Pixel pitch, μm | 12 | |
NETD, mk | <25 | |
Frame rate, Hz | 50 | |
Optical Specifications | Objective Lens,mm | 50 |
Optical zoom, x | 2.8 to 8.4 | |
Field of View, degrees / yd @ 100 yd | 8.8°/15.4yd | |
Digital zoom, x | 1 to 4 | |
Eye relief, mm | 50 | |
Diopter adjustment, D | -5 – +5 | |
Detection Range, m/yd | 2600/2844 | |
Display Specifications | Type | OLED |
Resolution, pixels | 1920×1080 | |
Wi-Fi | Wireless protocol | Wi-Fi |
Frequency, GHz | 2.4GHz | |
Video Recorder | Video/Photo resolution, pixels | 960×720 |
Video/Photo format | .mp4 / .jpg | |
Built-in memory, GB | 32 | |
Physical Specifications | Degree of Protection, IP code | IP67 |
Operating Temperature Range, °F | -4 to+122 | |
Weight, lb | 2.6 | |
Dimensions, inch | 14.6×3.5×3 | |
Connections and Compatibilities | Battery Type | 18650 |
Capacity, mAh | 3200 | |
Operating Time on Battery Pack (at t=72°F), h | 7 | |
External Power Supply, V | 5V (Type C USB) | |
Max Recoil Power on Rifled Weapon (Eo), g/Joules | 1000g/6000Joules | |

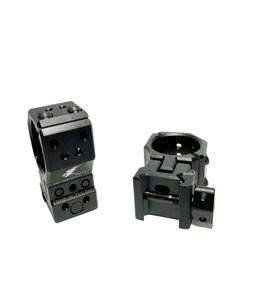

Compatible Mounts | 30mm rings |
